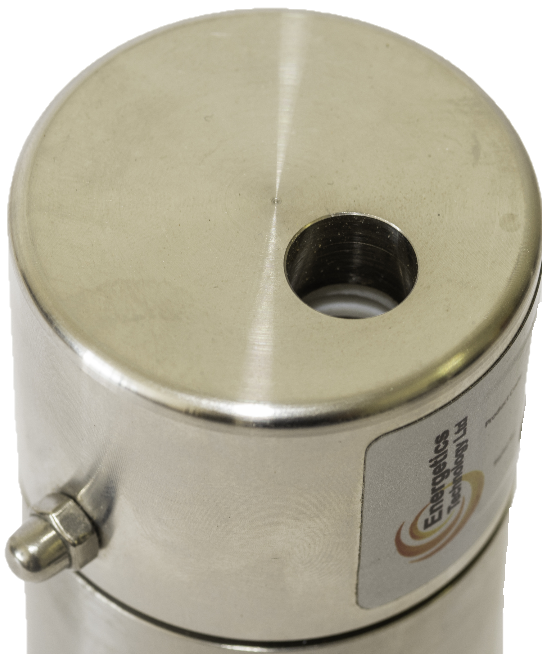

AMT Detonator Highlights
Designed for use in AMT (Advanced Manual Techniques) and manual render safe applications.
The AMT Detonator Canisters reduce the hazard effect from recovered detonators from an equivalent HT1 to HT4 classification. Therefore, enabling detonators to be disarmed with no risk of propagation.*
Used by Special Operations Forces and EOD teams. It's compact robust design is strong enough to contain the effects of any military or commercially available detonator plus any residual explosive that my be present.
CHARACTERISTICS
PRODUCT CODES
AMT Detonator Canister 9002
Part number: PN00997
AMT Detonator Canister 5002
Part number: PN01237
Testing Capability
Tested with a Number 8 electric detonator, initiated inside the chamber. No fragmentation or external blast effect were produced.
Also tested with 8 grams of C4 -no fragmentation or external blast effects produced.
(*Tested in Accordance with UN Series 6 (d) test, conducted for specific detonators only.)
(All weights and dimensions are approximate.)
SPECIFICATIONS | Part No: | Height: | Lid Diameter: | Body Diameter: | Weight: | 1 x Chamber |
---|---|---|---|---|---|---|
9002 | PN00997 | 145mm | 50mm | 50mm | 1.6kg | 12mm diameter x 95mm deep |
5002 | PN01237 | 138mm | 50mm | 43mm | 1.1kg | 12mm diamter x 95mm deep |
