GRENADE CONTAINMENT UNIT :

GCU

Request a Quote

GCU Highlights

The GCU can reduce the UN Hazard Classification and compatibility group of certain munitions to 1.2F to 1.4S. It improves personnel safety when storing and transporting grenades in a ready state. The unit is suitable for the military and the police, and is used by the French Grenarmerie.



The GCU is a steel fabricated cubic box with perforated steel sides and sliding doors. The draw is secured into the outer cubic box with a lanyard and pin.

The unit does not rely on any electronic, pneumatic or hydraulic components, and hence maintains its function with only basic maintenance and training.

The units are supplied in two formats, F1 and F4, originating from the type of hand grenade stored.

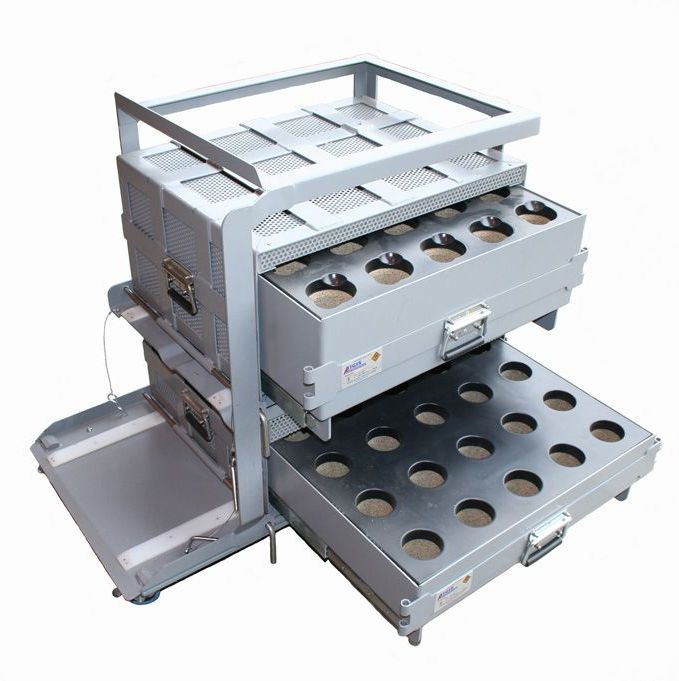

Two units are fitted to a trolley to enable easier movement.

The standard units have an array of 20 (4x5) chambers.

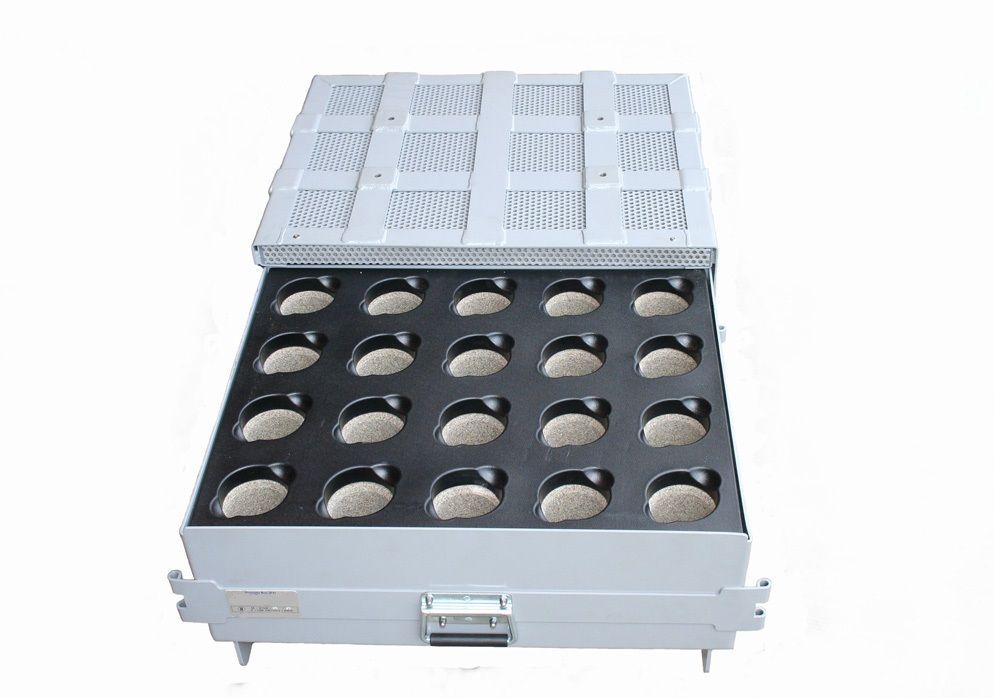

A carousel which holds 4 sample vials can be supplied for each of the chambers in a F4 drawer.

CHARACTERISTICS

  • Transports up top 1.5kg of armed explosives per tray (75g TNT per chamber)
  • Stores up to 20 primed grenades (F1 offensive grenades - UN No.0285, F4 CS gas grenades - UN No.0301 or up to 80 forensic samples
  • Extended lipped base to help slide tray out of the vehicle
  • Durable and easily cleaned



Product Codes



  • GCUF1 Drawer                  PN00606
  • GCUF4 Drawer                  PN00607
  • GCU Framed Trolley         PN00609
  • GCU Carousel (each)        PN00608




A safe, practical and affordable method of storage

Energetics technology are experts in energetic materials, blast mitigation and protection against explosion. Drawing on years of experience in the science of explosion and blast, it is our mission to design, test and manufacture blast mitigation solutions to help protect people and assets against explosive threats and to help maintain business operational continuity. All our products are put through the most rigorous design, manufacture and quality control procedures, and are scientifically tested to comply with UK Home Office and UN regulations. Our bespoke design service caters for those unique blast threats where a standard solution does not apply. Based at our UK facilities we provide a range of products and services to security forces and defence manufacturers including:
  • Design & manufacture of specialist energetic products
  • Research & development into HE and pyrotechnic compositions
  • Explosives & weapon system evaluations
  • CIED training & supply of EOD equipment
SPECIFICATIONS Framed Trolley GCU F1 Drawer GCU F4 Drawer
HEIGHT 980mm/38.5" 260mm/10" 320mm/13"
WIDTH 830mm/33" 771mm/30" 771mm/30"
DEPTH 950mm/38" 510mm/20" 510mm/20"
WEIGHT 24kgs/ 53lbs frame only 138kgs/304lbs 154kgs/340lbs
INTERNAL CHAMBER 20 x diameter : 70mm/3" 20 x diameter: 70mm/3"
depth : 103mm/4" depth : 183mm/7"
(*All weights and dimensions are approximate)
