Blast Protection products designed for "Class 1 Dangerous Goods"
containment and shipment
DETONATOR CONTAINMENT UNIT :DCU 560
DCU 560 Highlights
The DCU560 is designed to store explosive samples and contain the hazardous effects of detonating explosives. *
Used for primary and secondary explosive substances and articles. The DCU560 has been tested with 6 x 6g C4 explosive samples giving a total 46.8g (TNT Eq) NEQ.
Typical users are explosive manufacturers, EOD teams, special forces and military engineers.
It enables users to transport store up to 36gs of explosive materials.
For transport of samples by road, sea or air, local competent authority must be sought.
(* Tested in Accordance with UN Series 6 (d) test, conducted for specific detonators and substances.)
CHARACTERISTICS
- Safe containment of explosive samples
- 6 separate explosive samples contained in one unit
- No cross contamination of samples
- Prevents sympathetic detonation
- Eliminates propagation between inner containers in explosive event
- Based on standard ammunition container
- Removable internal sample containers
- Simple operation with minimal training
- Hand carriable by one person
- Small footprint
- Lockable and security sealable
- Environmentally sealed
- Durable and easily cleaned
Contains the blast effects and secondary fragments
The DCU500 range is widely used by demining companies, NATO and EOD teams (Army, Navy, RAF) worldwide and has applications in demolition, quarrying, mining and construction.
Using the DCU 560

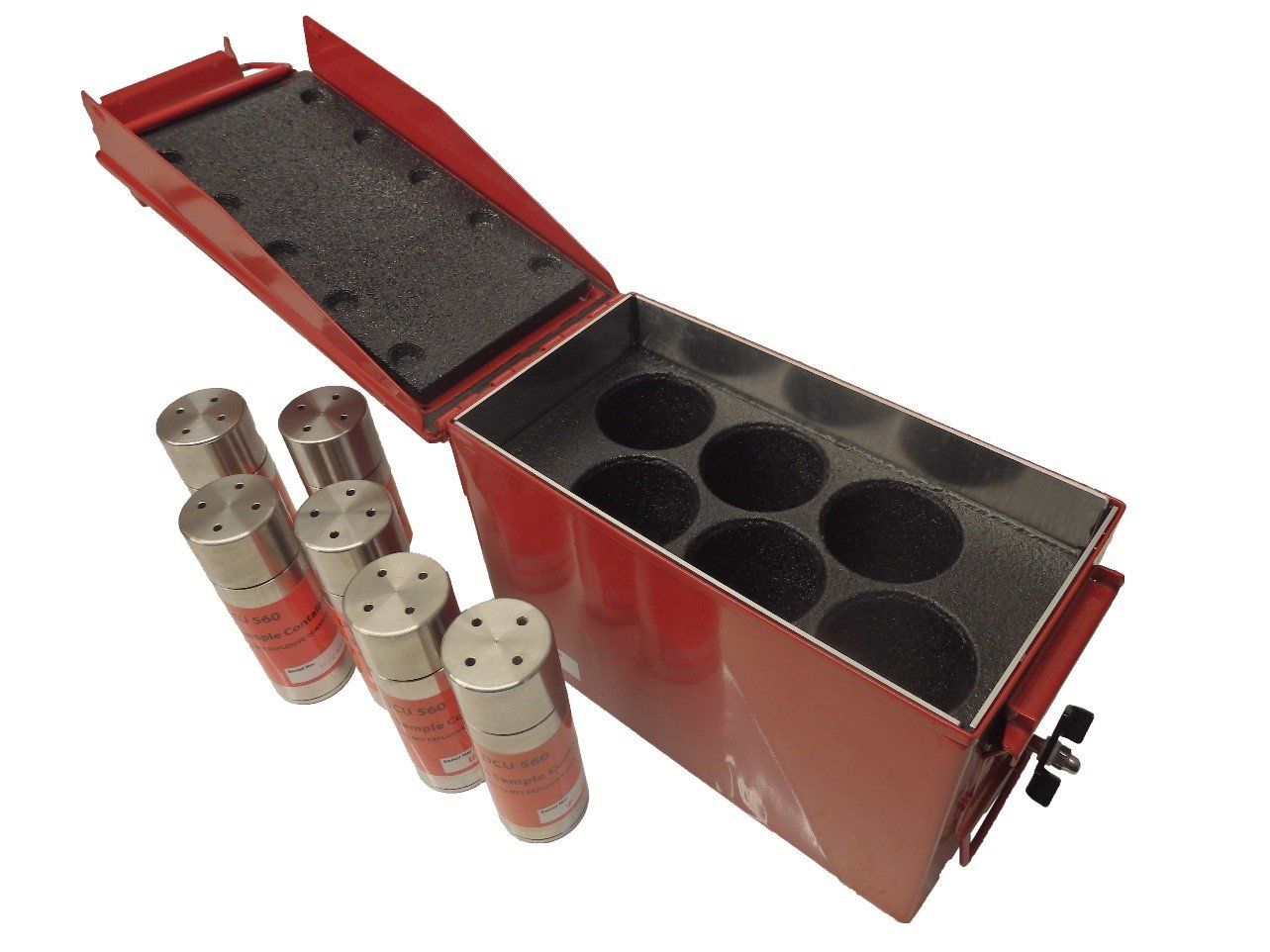

Explosive samples are placed in plastic vials. Each vial is inserted into the body of a steel flask. The lid of the flask is then screwed into position and the completed flask placed in one of the chambers within the unit. Note: the maximum quantity of explosive permitted in each vial is 6g NEQ. This is noted on the label on the outside of the flask.The lid of the DCU560 presses down on the flasks to hold them securely.
Transport certificate No. D/BAM-0276/17
Storage certificate No. D/BAM-0277/17
| SPECIFICATIONS | DCU 560 | ||||
|---|---|---|---|---|---|
| External Dimensions | Length: | 320 mm / 13" | Internal Dimensions | Depth: | 75 mm / 3" |
| Width: | 155 mm / 6" | Diameter: | 25 mm / 1" | ||
| Height: | 195 mm / 7.5" | ||||
| Total Weight | 14 kg / 31 lbs | ||||
| Number of Internal Metal Flasks Supplied: | 6 |
(*All weights and dimensions are approximate)

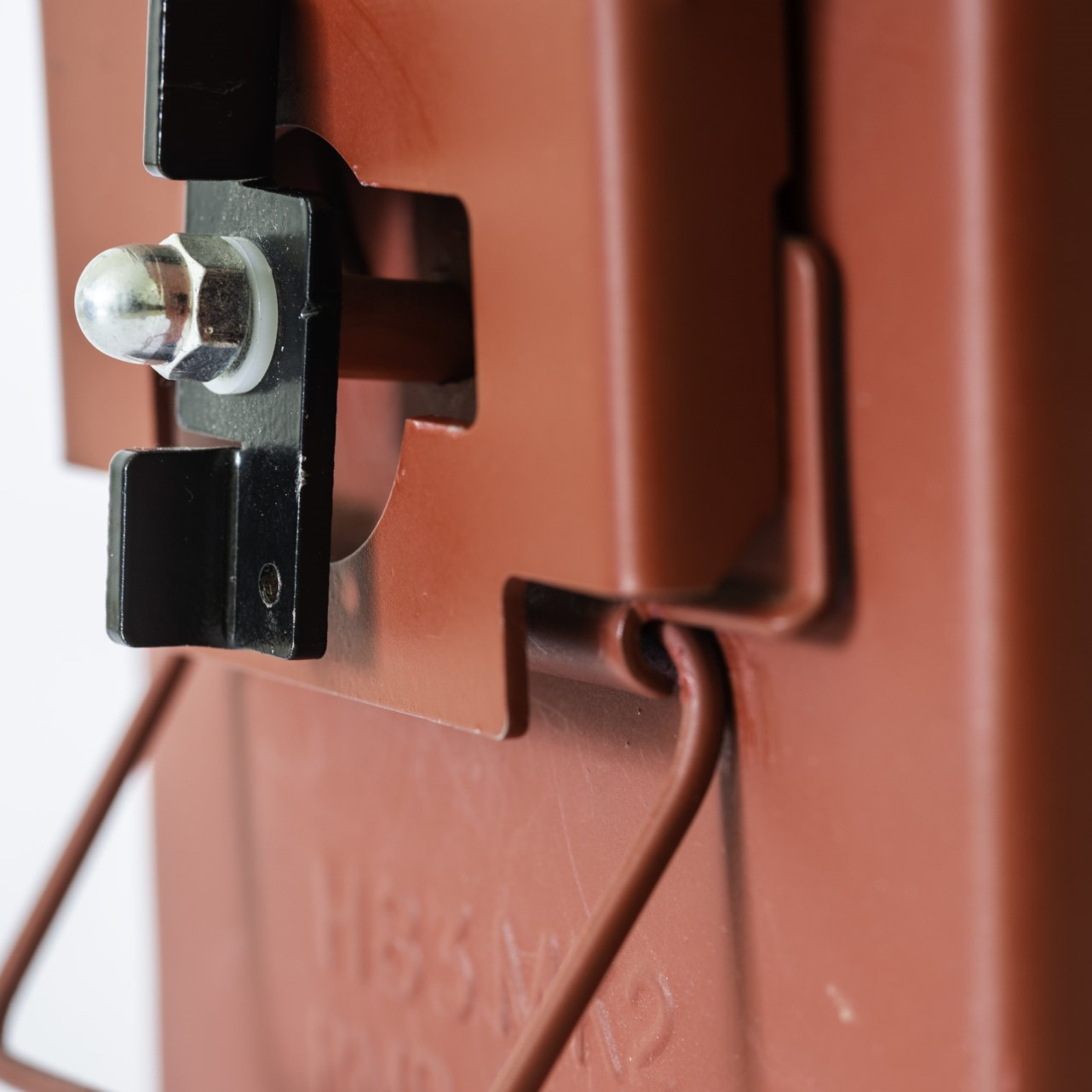

As with all variants of the DCU 500 series we can include the facility to wire lock the unit for security purposes
